Graduated spacing
Every station sized to the socket that lives in it. No dead air between sizes and no slot for a size you do not own.
Tool storage
Every socket you own.
No empty air.
Sockets sit on a post that grips the drive square, so one tray fits every brand. Spacing is cut from the published outside diameter of each size, so nothing is wasted and nothing is left out. Size markings are molded in, not stuck on.
The problem
Fixed spacing wastes your drawer
A molded tray carries one spacing for every socket, because changing the spacing means changing the mold. That is why owners of every brand on the market say the same three things: there are large gaps between sockets, deep impact sockets no longer clear the drawer once a tray is under them, and there are slots for sizes their set never came with.
None of that is fixable in tooling. All of it is free to fix when the part is printed to order.
ODin trays are spaced per size. Each station is set from the maximum outside diameter published in ISO 2725 — measured at the hex end and at the drive end, because on a small socket fitted to a large drive it is the drive end that is widest.
Drawer floor used, Milwaukee PACKOUT drawer
- Drawer cavity
- 414 × 318 mm
- Common 42 mm grid, 9 × 7
- 378 × 294 mm
- Four ODin modules
- 410 × 314 mm
- Extra usable floor
- +15.8 %
- Base thickness
- 4.0 mm
- Long 1/4 in socket, tray and all
- 56 mm in a 58.7 mm drawer
Cavity confirmed against Milwaukee's own 48-22-8452 foam insert and 48-22-8473 divider kit.
Or start with the set
Trays cut to the set you bought
No measuring and no guessing which module you need. These are laid out straight off the manufacturer’s own published parts list, so every socket in the set has a post and there is a post for nothing else.
Pre-launch
Milwaukee 48-22-9004

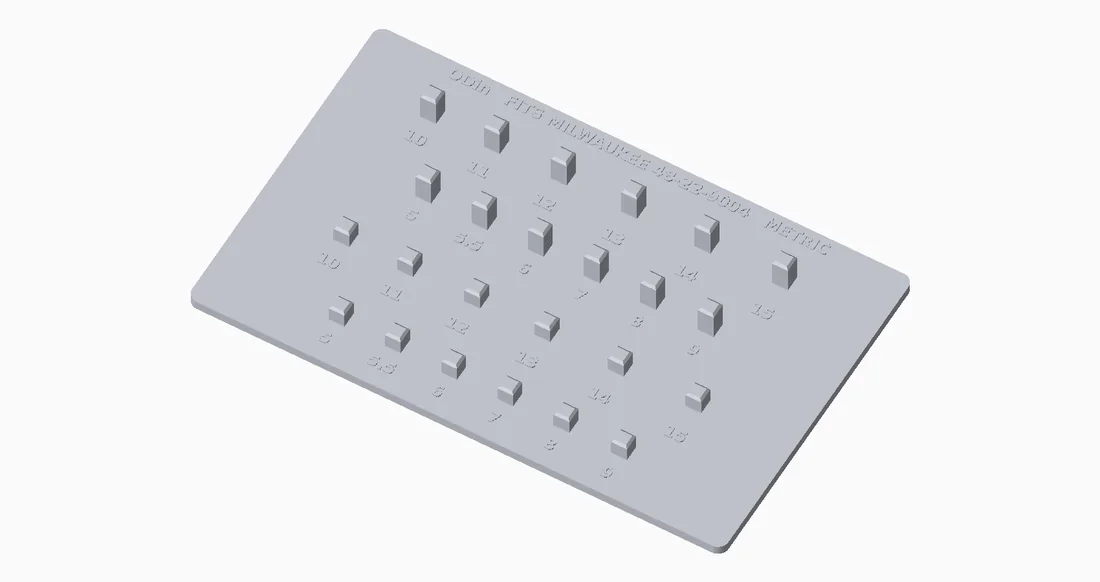

OD-250M Metric 5–15 mm, standard and deep
1/4 in drive, 50 pc · 24 posts
Pre-launch
Milwaukee 48-22-9004
OD-250S SAE 5/32–9/16 in, standard and deep
1/4 in drive, 50 pc · 19 posts
Pre-launch
Milwaukee 48-22-9008

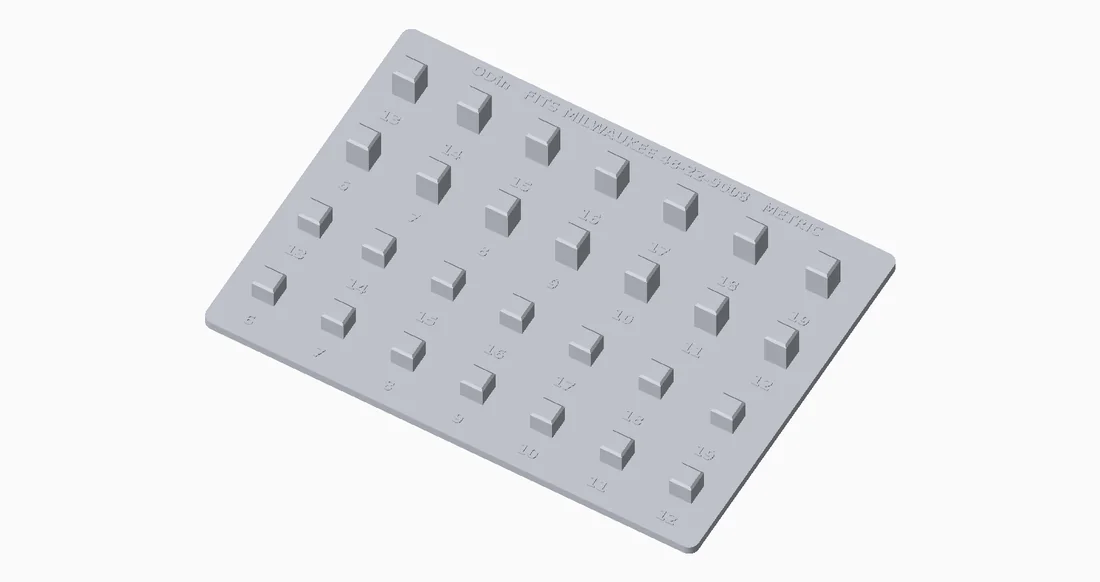

OD-251M Metric 6–19 mm, standard and deep
3/8 in drive, 56 pc · 28 posts
Pre-launch
Milwaukee 48-22-9008
OD-251S SAE 1/4–1 in, two modules
3/8 in drive, 56 pc · 26 posts
More sets in progress — Husky 280-piece H280MTS, Kobalt 302-piece, Craftsman VERSASTACK 242 and 262, DeWalt 192-piece DWMT75049. Tell us which set you own and it moves up the list.
Compatibility
Start with the box you own
MilwaukeePACKOUT drawers
Husky26, 27, 52 in chests
DeWaltTOUGHSYSTEM, TSTAK
CraftsmanChests, VERSASTACK
Snap-onHeritage, Masters
42 mm gridBaseplate variant
| Box | Drawer interior | Drawer height | Modules per drawer |
|---|---|---|---|
| Milwaukee PACKOUT 48-22-8442 | 414 × 318 mm | 127 mm | 4 |
| Milwaukee PACKOUT 48-22-8443 | 414 × 318 mm | 76.2 mm | 4 |
| Milwaukee PACKOUT 48-22-8444 | 414 × 318 mm | 58.7 mm | 4 |
| Husky 27 in roll cab | 584 × 386 mm | 51–254 mm | 4 |
| Husky 52 in cabinet, full width | 1209 × 401 mm | 89 mm | 10 |
| DeWalt TOUGHSYSTEM 2.0 DWST08320 | 448 × 279 mm | 102 mm | 2 |
| DeWalt TSTAK DWST17804 | 347 × 254 mm | 45 mm | 2 |
| Snap-on Heritage, narrow | 285 × 445 mm | 41–295 mm | 2 |
Interiors are manufacturer-published except where noted. Craftsman publishes no drawer interiors; send a measurement and the tray is cut to it.
What you get
Four things a mold cannot do
One post, every brand
The post grips the drive square, which is fixed by standard at 6.35, 9.525 and 12.70 mm. Chrome or impact, shallow or deep, any maker.
Molded markings
Sizes are printed into the part in a second color. Nothing to peel off, nothing to wear away under a socket.
Cut to your drawer
A 4 mm base keeps long sockets clearing the shallowest PACKOUT drawer. Deeper drawer, taller posts. Your box, your numbers.
The line
Fifteen parts, eleven drives
Drawn, watertight and print-ready. First articles are in production now; pricing opens when the fit check is signed off.
Pre-launch
1/4 in drive · chrome

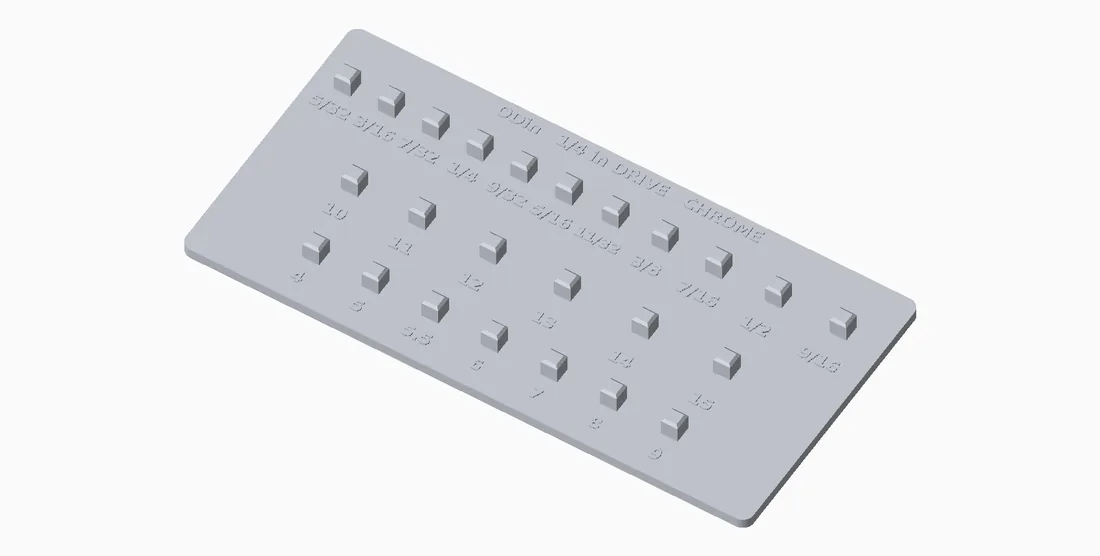

OD-200 Socket Tray, metric 4–15 mm and SAE 5/32–9/16
24 stations
Pre-launch
1/4 in drive · deep
OD-201 Socket Tray, deep sockets, same size range
24 stations
Pre-launch
3/8 in drive · metric
OD-202 Socket Tray, 6–19 mm
14 stations
Pre-launch
3/8 in drive · SAE
OD-203 Socket Tray, 1/4–1 in
13 stations
Pre-launch
1/2 in drive · metric

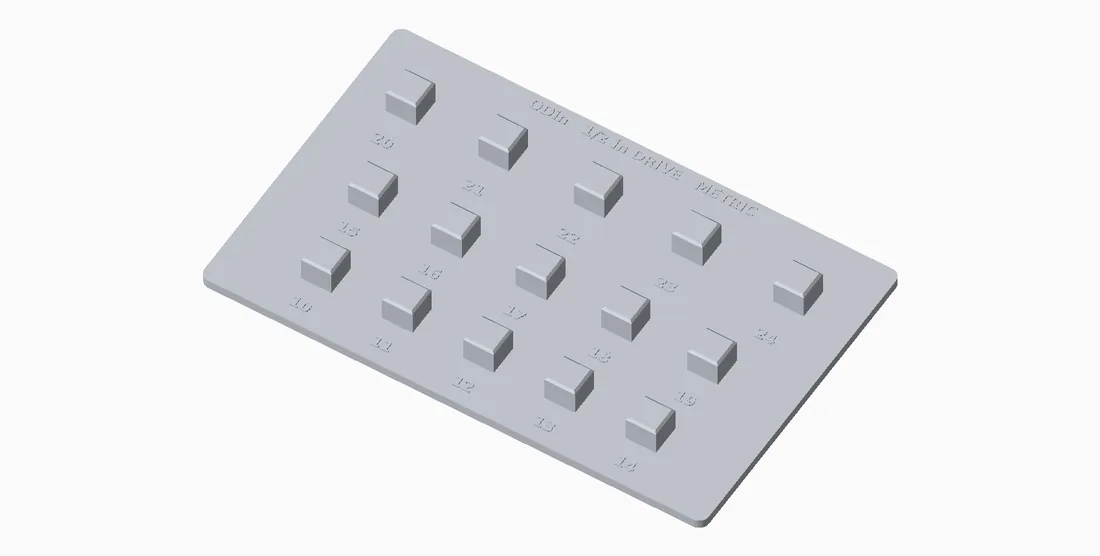

OD-204 Socket Tray, 10–24 mm
15 stations
Pre-launch
1/2 in drive · SAE
OD-205 Socket Tray, 3/8–1 in
11 stations
Pre-launch
3/8 in impact · metric
OD-206 Impact Socket Tray, 8–19 mm
12 stations
Pre-launch
3/8 in impact · SAE
OD-207 Impact Socket Tray, 1/4–7/8 in
11 stations
Pre-launch
1/2 in impact · metric
OD-208 Impact Socket Tray, 10–24 mm, two modules
13 stations
Pre-launch
1/2 in impact · SAE
OD-209 Impact Socket Tray, 3/8–1 in
11 stations
Pre-launch
Combination wrenches

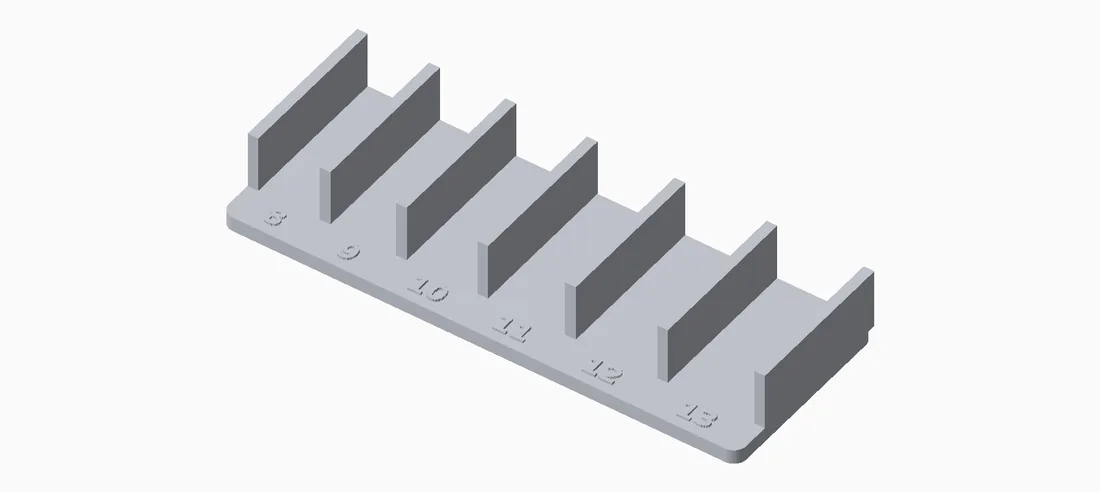

OD-211 Wrench Comb, metric 8–19 mm and SAE 1/4–13/16
4 combs
Made in the USADrawn, printed, finished and packed in house. Nothing bought in, nothing drop-shipped.
Built to published numbersEvery fit comes off a published standard or a manufacturer drawing, not a guess.
You talk to the makerOne-person shop. The person who drew the part answers the email.
Product requests
What should we make next?
Got a tool box with no insert, a drawer full of loose sockets, or a part on something you own that broke and can't be replaced? Send the model number. A good share of the line started that way.
